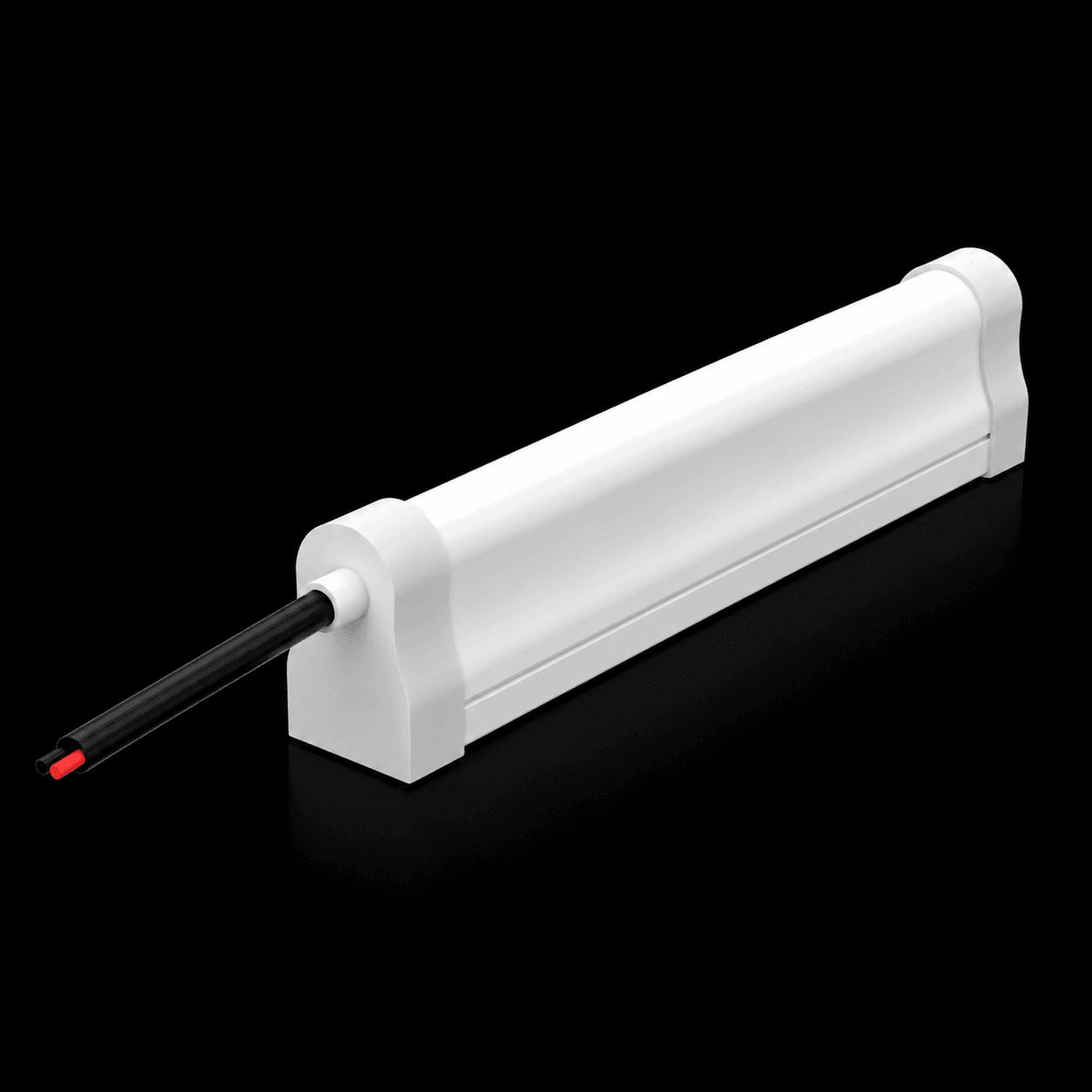

The SP-XD3220-24V Flexible LED Light Tube is a soft linear lighting solution for indoor architectural, decorative and display applications. Its silicone construction and L × W20 × H32 mm profile allow it to create a clean, continuous line of light in display furniture, wall details, ceiling features, counters and commercial interiors.
Available in 5W, 8W and 10W configurations, the fixture provides output options of 500 lm, 800 lm and 1000 lm. With a 120° beam angle, it provides broad and even illumination for ambient lighting, decorative effects and material-display support.
With CRI Ra ≥90, the SP-XD3220-24V helps colors and finishes appear more natural. It is available in 3500K, 4200K and 5000K options for different lighting atmospheres. The product uses DC 24V input and clip-in mounting, making it suitable for integrated linear-lighting projects in dry indoor spaces.
| Item | Specification |
|---|---|
| Model | SP-XD3220-24V |
| Category | Flexible LED Light Tube |
| Installation | Clip-in Mounted |
| Power | 5W / 8W / 10W |
| Input Voltage | DC 24V |
| Color Temperature | 3500K / 4200K / 5000K |
| IP Rating | IP20 |
| Beam Angle | 120° |
| Horizontal Rotation | Not Adjustable |
| Vertical Tilt | Not Adjustable |
| Power Factor | ≥0.9 PF |
| Color Rendering Index | CRI Ra ≥90 |
| Luminous Flux | 500 lm / 800 lm / 1000 lm |
| Luminous Efficacy | ≥60 lm/W |

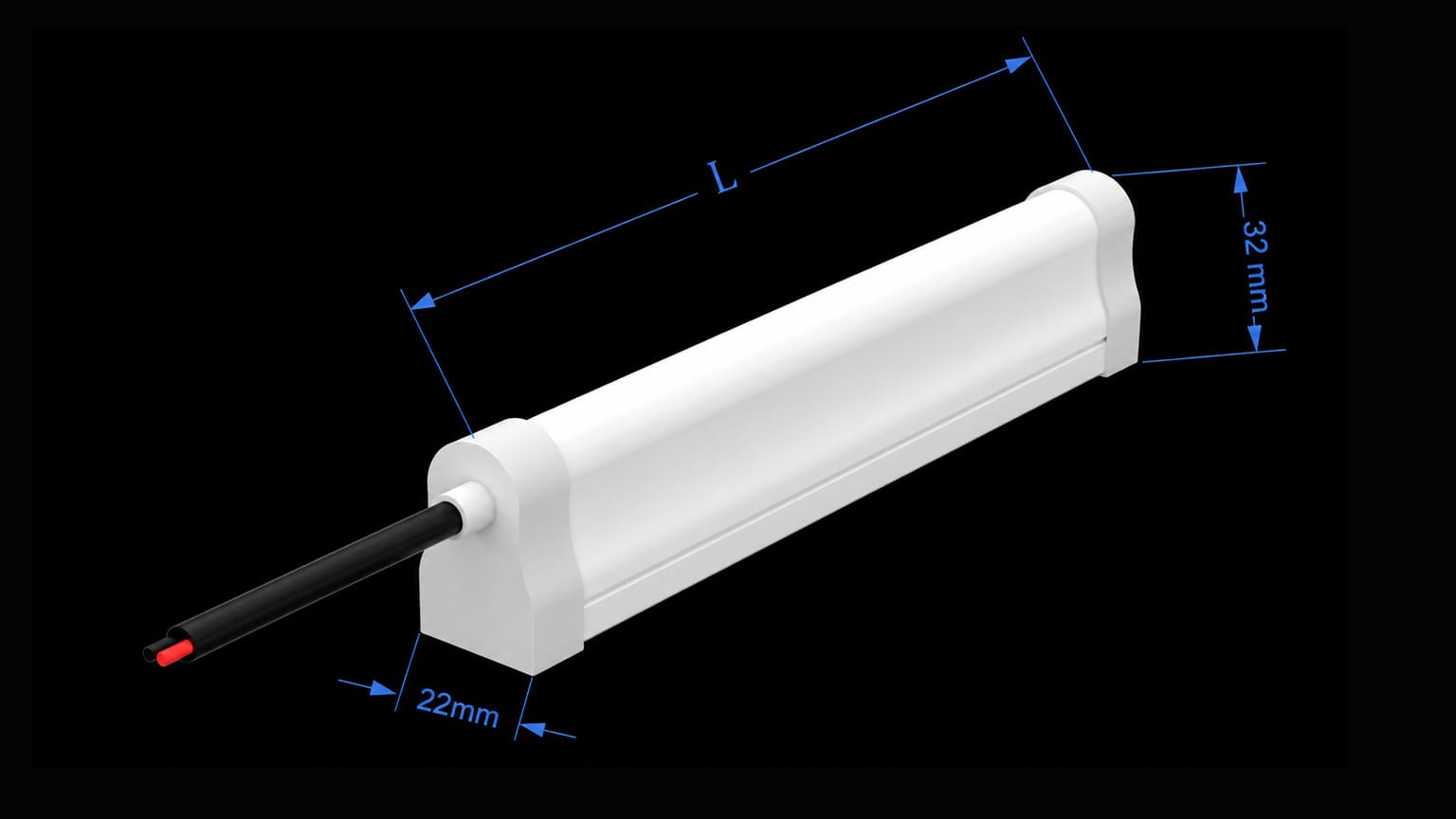

| Product Size | L × W20 × H32 mm |
| Cut-out Size | Not Applicable |
| Finish | Matte White |
| Material | Silicone |
| Manufacturing Process | Silicone Extrusion |
