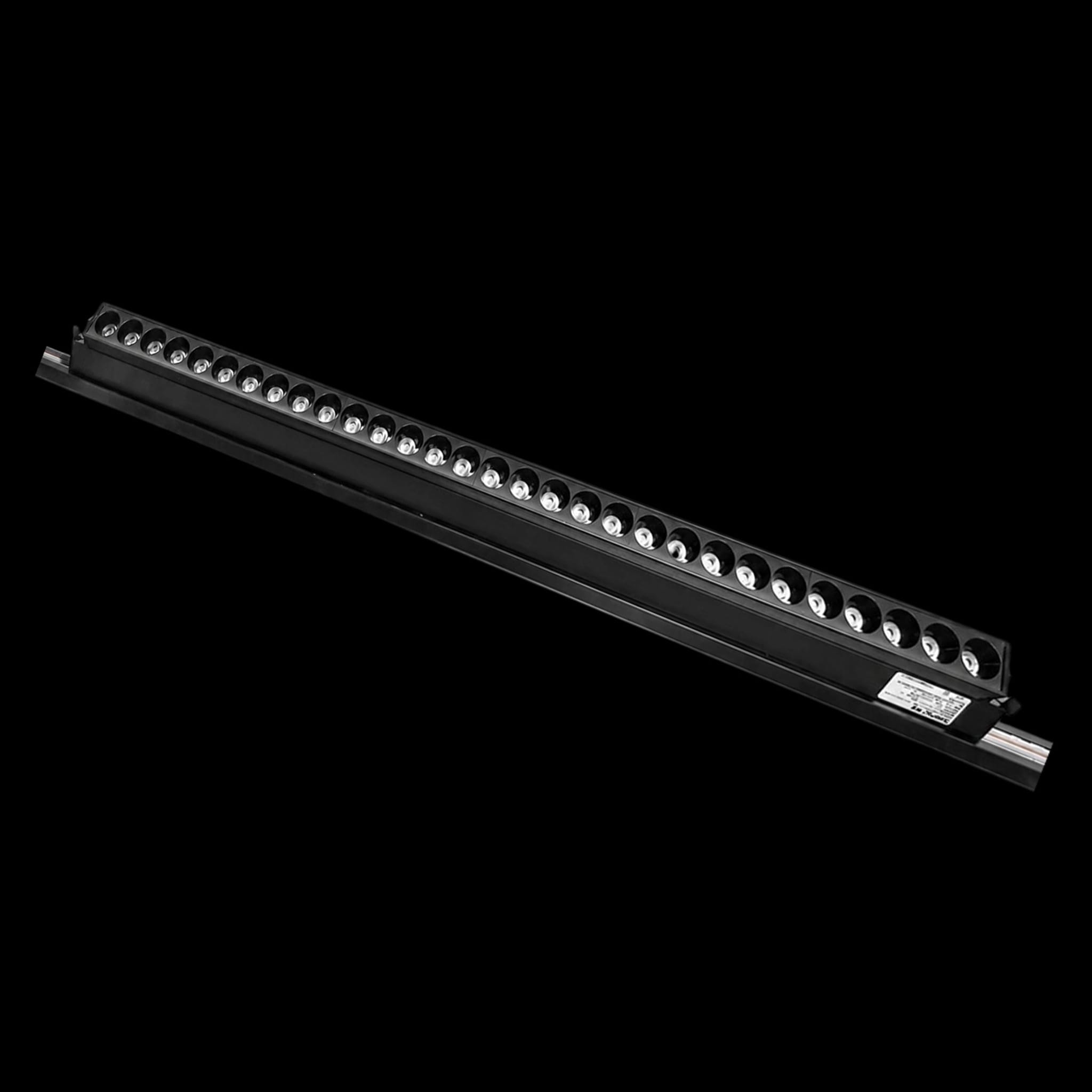

The SP-GD58535H61B1 20-Cell Grille Track Light is a 30W track-mounted linear fixture designed for professional commercial lighting applications. Its multi-cell grille design and slim L585 × W35 × H61 mm profile make it suitable for showroom display walls, retail spaces, galleries and premium architectural interiors.
With 24° and 36° beam-angle options, the fixture can provide either more concentrated product highlighting or wider accent coverage. Its 150° forward and backward adjustment allows the lighting direction to be adapted to changing product displays, feature walls and spatial requirements.
Delivering 3000 lm with CRI Ra ≥90, the SP-GD58535H61B1 helps colors, textures and material finishes appear more natural and detailed. The fixture is finished in Matte Black and made from 6063 aluminum through aluminum extrusion and CNC machining, supporting a clean and contemporary commercial lighting design.
| Item | Specification |
|---|---|
| Model | SP-GD58535H61B1 |
| Category | 20-Cell Grille Track Light |
| Installation | Track-mounted |
| Power | 30W |
| Input Voltage | AC 220V, 50/60Hz |
| Color Temperature | 4000K / 4500K / 5000K / 5300K |
| IP Rating | IP20 |
| Beam Angle | 24° / 36° |
| Horizontal Rotation | Not Adjustable |
| Forward/Backward Adjustment | 150° |
| Power Factor | ≥0.95 PF |
| Color Rendering Index | CRI Ra ≥90 |
| Luminous Flux | 3000 lm |
| Luminous Efficacy | ≥85 lm/W |
| Product Size | L585 × W35 × H61 mm |
| Cut-out Size | Not Applicable |
| Finish | Matte Black |
| Material | 6063 Aluminum |
| Manufacturing Process | Aluminum Extrusion + CNC Machining |
